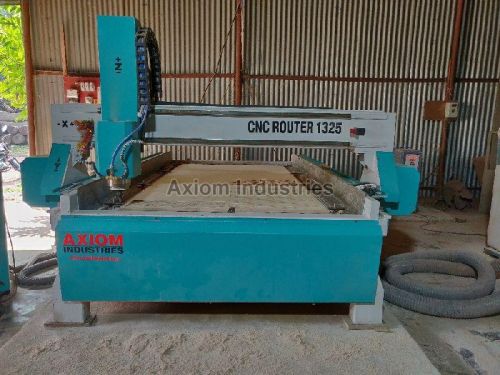

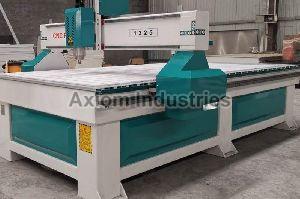

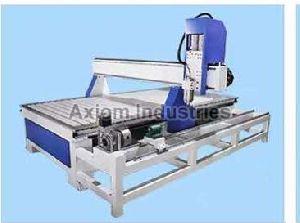

CNC Router Machine


CNC Router Machine
Price : 5.25 Lac / 16Get Best Price

MOQ : 1 16

Business Type Manufacturer, Exporter, Supplier, Retailer, Trader, Importer
Type Cnc Router Machine
Application Aluminium Cutting, Metal Material Cutting, Plastic Cutting, Wood Cutting
Weight 1000-2000kg, 2000-4000kg
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Color
Black, Grey
Voltage
220V, 380V
Condition
New
Rated Power
5-7kw
Automatic Grade
Automatic
Driven Type
Electric
Warrenty
1 Year
Moving Speed
25 m/min
Spindle Speed
0 -24000r/min
Traveling Positioning Accuracy
+-0.05mm
Table Surface
T-Slot
Max. Rapid Travel Rate
25000mm/min
Max. Power Consumption
1.84KW
Max. Working Speed
15000mm/min
Spindle Power Motor
3.0KW
Driver
860 and 450A
Working voltage
AC380V/60Hz
Size
1400x2700x220 mm
Working Area
1300x2500 mm
Table Size
1400 x 2700 mm
Product Code
AI 1325
Port
Nava sheva
Payment Terms
L/C, T/T, Other
Delivery Time
35 days

Hello, Sir/ Madam, Here some basic information about cnc router machine. •Stepper motor drive yako brand. •5.5kw water cooled spindle. •DSP Rich Auto A11e controller. •Hiwin rail 25mm thickness. •Yyc Taiwan rack and pinion. For any other information contact please feel free to contact me. Thank you M:- 9099911515
